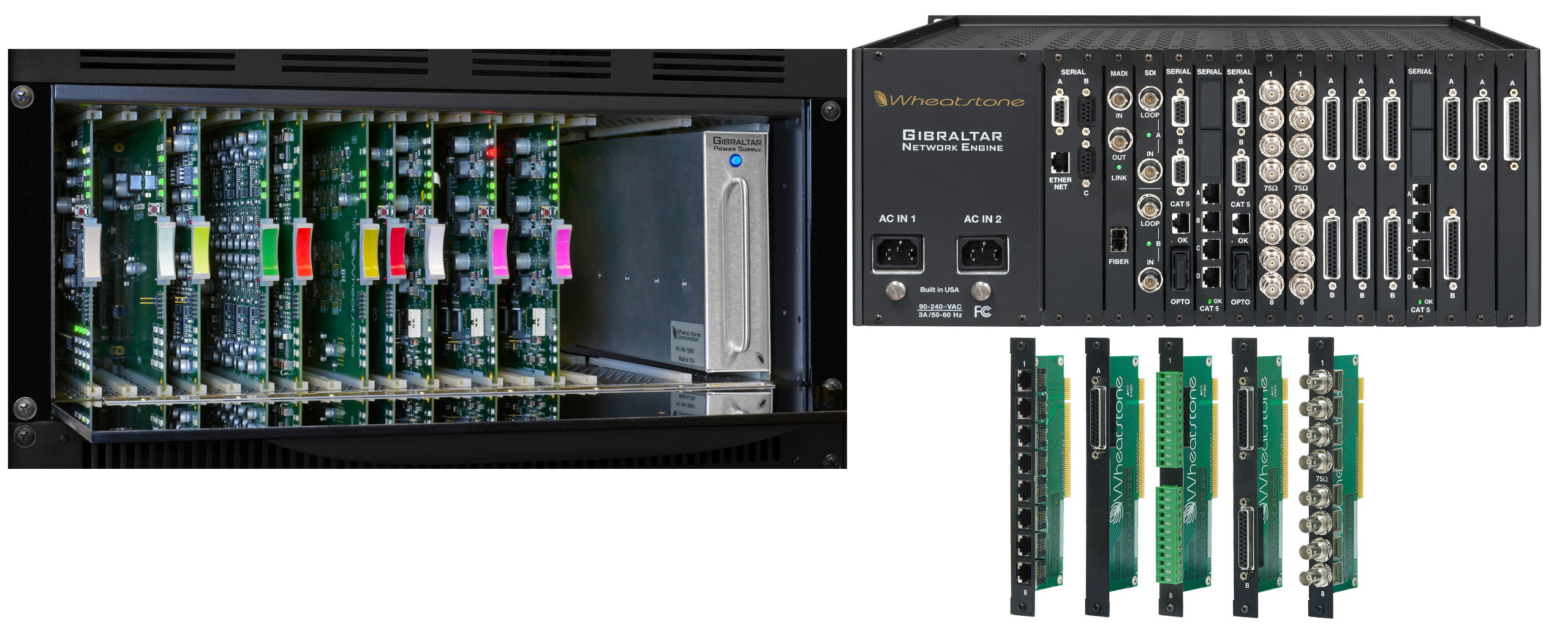

Gibraltar Network Cards and Modules

Choose from our large selection of full-height cards for your Gibraltar Network Cage, and configure a system that is ideal for your studio needs.

Specifications and features subject to change without notice.





HOST CPU — CPU-2001

Host Computer Card. This card provides host computer functionality to make the Gibraltar Network cage a system master.

Function     System control

Redundancy     Optional second CPU for automatic failover

Rear connector panel

DB9 “A” (RS485 or RS232)

DB9 “B” (RS485)

DB9 “C” (AES sync)

Ethernet (configuration PC).   two 10pin (power)




DIGITAL SIGNAL PROCESSOR CARD — DSP-2009

Function     Mixing, routing, EQ, dynamics




DIGITAL INPUT CARD — AES-2024

8-Channel AES Digital Input Card. Provides 8 AES digital inputs, each with onboard sample rate conversion.

Inputs    8 transformer coupled  (AES-2024/8), 16 transformer coupled (AES-2024/16)

Impedance     110Ω balanced AES-3, S/PDIF compatible or 75Ω unbalanced

AES-3id, depending upon rear connector panel

Reference level     -20dBFS

Channel configuration     Mono, stereo, 5.1

Rear connector panel     DB25, RJ45 or BNC




DIGITAL OUTPUT CARD — DO-2024

Outputs    8 transformer coupled (DO-2024-8) or 16 transformer coupled (DO-2024-16)

Impedance     110Ω balanced AES-3, S/PDIF compatible or 75Ω unbalanced AES-3id, depending upon rear connector panel

Reference level     -20dBFS

Channel configuration     Mono, stereo, 5.1

Rear connector panel     DB25, RJ45 or BNC




ANALOG INPUT CARD — ADI-2001

Provides 8 stereo or 16 mono analog balanced line inputs.

Inputs     16 electronic differential

Impedance     20KΩ (bridging)

Reference level     +4dBu = -20dBFS

Sample rate converters     32-96kHz, 16-24bit

Channel configuration     Mono, stereo, 5.1

Rear connector panel     DB25 or RJ45




ANALOG OUTPUT CARD — AO-2001

Provides 8 stereo or 16 mono analog balanced line outputs.

Outputs     16 electronic balanced

Impedance     50Ω, to drive loads of 600Ω or greater

Reference level     +4dBu = -20dBFS

Maximum output level     +24dBu

Channel configuration     Mono, stereo, 5.1

Rear connector panel     DB25 or RJ45



MICROPHONE CARD — MIC-2001

8-Channel Mic Input Card. Provides 8 mono microphone inputs with preamps.

Inputs     8 electronic differential

Reference level     -50dBu = -20dBFS

Gain range     +20 to +80dB

Phantom power     Switchable

Maximum input level     -10dBu

Sample rate converters     32-96kHz, 16-24bit

Channel configuration     Mono, stereo

Outputs     8 direct analog outputs

Rear connector panel     DB25 or RJ45




SDI EMBEDDED INPUT CARD — SDI-2001

SDI Input Card. Provides two input ports capable of de-embedding audio from SDI digital signals.

Inputs     2 inputs, auto-detect of SMPTE 259M (SD-SDI) or SMPTE 292M (HD-SDI)

Channel configuration     Each input can de-embed two groups (4 channels)

Rear connector panel     4 BNCs (input and loop-thru for two SDI inputs)




MADI DIGITAL INPUT CARD — MADI-2001

MADI Input/Output card. Provides 64-channel MADI input and output ports. Can be used in conjunction with the MADI BLADE to connect Gibraltar and WheatNet-IP networks.

I/O     Two AES10-2003 (MADI), auto-detect of 56 or 64 channels

Rear connector panel     Fiber (SC duplex) and 2 BNCs




LOGIC INPUT/OUTPUT CARD — LIO-2024

Provides 24 logic input/output ports.

Function     Programmable GPI

Ports     24, each configurable as input/GPI or output/GPO

Input GPI     Floating opto-isolated photodiode, +5 to +15VDC, maximum current 50mA

Output GPO     Solid state relay, maximum load 120mA, ±100V; not to be used to switch AC mains

Rear connector panel     DB25




QUAD AUDIO NETWORK CARD — QAT-2001

Provides four TDM network links to or from other networked devices or other cages.

Function     Connects master Gibraltar Network to up to 4 remote Gibraltar Network, Gibraltar Network Satellite, E-SAT frames, or control surfaces

Channels     256 per card RJ45, fiber (SC duplex), or SPF modular
